10 Gbps, Low Profile, PCI-X, CX-4 Copper/Optical,
2M concurrent sessions, TOE NIC

RedHat AS 4.0
RedHat 9.0
Variety of 32/64 bit 2.6 & 2.4 kernels

LeWiz's MAGIC2028-10G™ is a 10 Gbps ultra high performance CX-4 Copper/Optical PCI-X NIC with a optional powerful on-board TCP/IP Offload Engine (LE2028™) chip. This dual option board is designed for high performance high usage networked systems such as servers, storage and networked appliances over copper or optical. By off-loading TCP/IP processing to hardware, the MAGIC2028-10G™ takes the host processor(s) out of the TCP/IP loop, no longer performing the major TCP/IP tasks in software. This balanced approach allows the host processor(s) to utilize most of its processing capability to run applications resulting in reduced system bottlenecks and enhanced system performance. Furthermore, the MAGIC2028-10G™ accelerates the TCP/IP processing effectively reducing network latency and overhead in network attached systems. The MAGIC2028-10G™plugs directly into the systems PCI-X slot. It has the capability of handling a load of up to 2M concurrent connections.

TCP/IP is the protocol used to communicate server to server, server to PC, server to storage, server to network appliance, and the list of applications continues to expand. Unfortunately, TCP/IP places a very heavy burden on host CPUs. With the advent of 10 Gbps ethernet, server CPUs choke while processing the TCP/IP overhead associated with transferring data. This board offloads the TCP/IP processing from the host CPUs, freeing up valuable CPU cycles for application processing while maintaining the programmability, configurability, and flexibility via the host interface. It supports fail-over protection/alternate pathing capability required in high-performance server and storage systems. The result is faster servers, an accelerated network, and superior application performance, saving cost and improving reliability for the enterprise network. The MAGIC2028-10G™ is ideal for network intensive environments such as file serving, network attached storage (NAS), high performance technical computing, high-end backup and restore, IP storage, and video serving.

Using LeWiz's advanced layer-processing architecture, the MAGIC2028-10G™ with the LE2028™ chip offers the highest performance, lowest power and most cost effective way of addressing the performance bottlenecks found in many IP network-attached equipment.

Lowers overall network cost

     - Increases throughput and load handling for systems

     - Delay new purchase of hardware and software

     - Better reliability, less downtime
Enhances and balances system performance

     - 2M concurrent connections

     - Allows processor to run applications efficicently
Enhances System security

Reduces network maintenance and service cost

Non-intrusive to system hardware and software

Easy plug-n-play installation


Performs TCP/IP functions in hardware, not software, for lowest latency and overheard

Handles MACs directly without CPU intervention

Optional local memory, utilize system memory

Full TCP/IP offload

Supports fail-over protection (alternate pathing)

Supports port aggregation, bonding

On chip DMA engine for high speed data throughput

Full remote diagnostics capability

Qualified across multiple host platforms from Dell™, HP™, IBM™, SUN™, TYAN™, and others

Supports all CPU types: Opteron™, Pentium™, XEON™, PowerPC™, SPARC™, MIPS™, and others

Board size: Low profile PCI-X NIC (2.5” x 6.6”)


Server (application servers, Web/DNS/e-mail/file servers, etc.)

Storage (iSCSI, SAN/NAS, etc.)

iSCSI NIC, initiator or target

Remote KVM switching

Security appliances (firewalls, load balances, etc.)

Network appliances

Compression systems

Streaming Multimedia

Product Functionality

Compatible with PCI-X 1.0b and PCI 2.2 Standards

64-bit/133/100/66MHz, 3.3V PCI-X bus interface

Compatible with IPv6 amd IPv4

External SDRAMs extend up to 2M concurrent connections

Concurrent transmit and recieve operations across all ports

Buffers optimized for fast packet & stream transfers

Full software support with device driver

TCP/IP Features Supported

Full TCP/IP offload

Non-intrusive to existing TCP/IP stack

Reassembly of incoming data

Segmentation of outgoing data

Sequence ordering - handling out of order segments

Overlap elimination - handling duplicate segments

Re-transmission, Flow control, etc.

TCP timer handling

Connection set-up and tear down

Hardware checksum processing

Window scaling, updating, and sizing

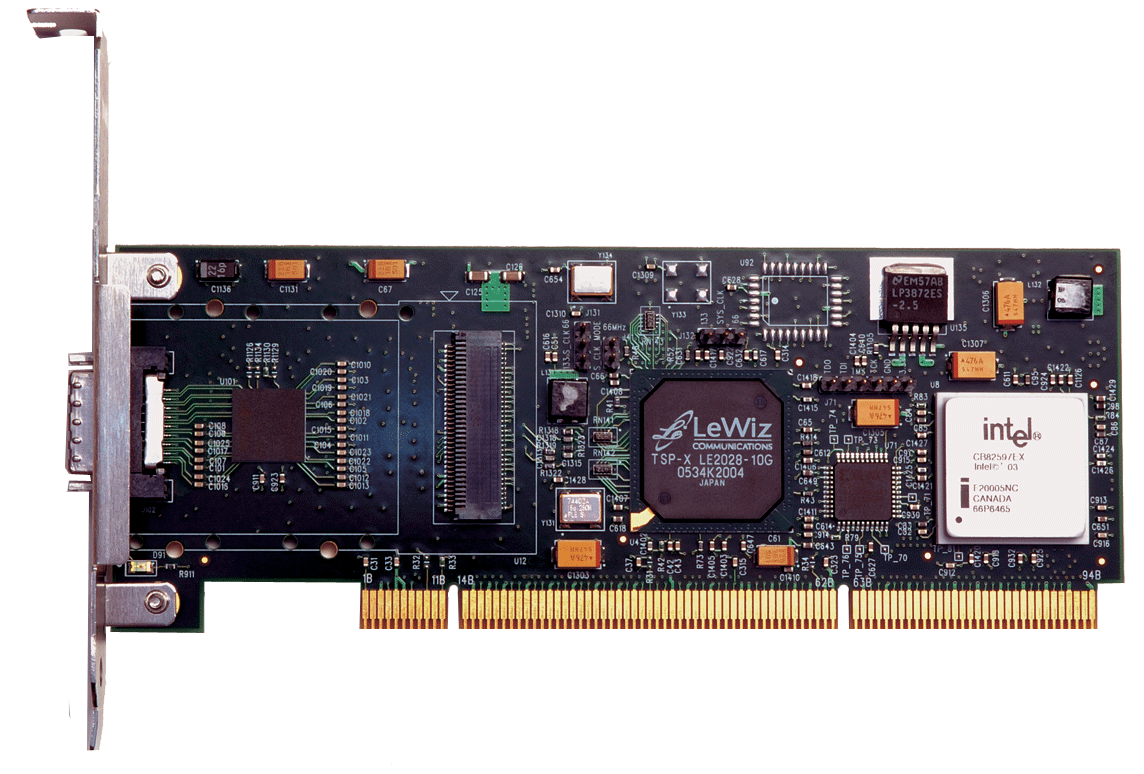

     10Gbps MAGIC2028-10G™ with LE2028 TCP/IP Offload TOE NIC

Ordering Part#:
(Please specify your specific OS version when ordering)
